Description

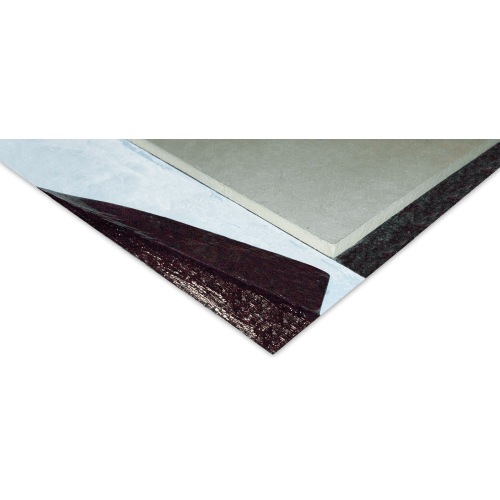

High performance base sheet panel composed of SBS modified bitumen membrane with a non-woven polyester reinforcement, factory-laminated on a HD polyisocyanurate insulation support panel (SOPRA-ISO PLUS HD).
UNITS PER SKID:
2.44m - 70, size - 1/2" 3'x8'
4.88m - 36, size 1/2" 3'x16'
Material Use:
2-1 SOPRASMART ISO HD is a high-performance, factory-laminated base sheet panel designed for use in roofing systems. It combines a durable SBS-modified bitumen membrane with a high-density polyisocyanurate insulation board, making it ideal for waterproofing and thermal insulation in commercial and industrial flat roofing applications.
System Components:
This product is a composite system consisting of two primary components:
1. SBS-Modified Bitumen Membrane – Reinforced with non-woven polyester and surfaced with a thermofusible plastic film.
2. High-Density Polyisocyanurate Insulation Panel (SOPRA-ISO PLUS HD) – Provides thermal resistance and compressive strength.
The membrane features a DUO SELVEDGE edge, which includes a self-adhered section and a torch-applied section for secure lap sealing. End laps are reinforced with SOPRALAP membrane for added waterproofing integrity.
Applications:
2-1 SOPRASMART ISO HD is used as a base sheet in multi-layer SBS-modified bitumen roofing systems. It is suitable for new construction and re-roofing projects on commercial and industrial buildings. The product is compatible with steel deck substrates and is designed to provide both waterproofing and insulation in a single application.
Application Details:
- Installation Methods:
- *Hot Bitumen:* Installed in a bed of SEBS or oxidized bitumen applied with a mop.
- *Adhesive:* Can be adhered using DUOTACK adhesives.
- *Mechanically Fastened:* Fastened to steel decks using SOPREMA screws and plates, following specific fastening patterns.
- Lap Sealing: Side laps feature a DUO SELVEDGE (self-adhered and torch-applied). End laps must be aligned and covered with SOPRALAP membrane.
- Panel Dimensions: Available in 0.914 x 2.44 m (3 x 8 ft) and 0.914 x 4.88 m (3 x 16 ft) sizes.
- Total Thickness: 14.9 mm (19/32 in), with a 12.7 mm (½ in) insulation panel.
- Selvedge Width: 90 mm (3.5 in).
- Weight: 4.15 kg/m² (0.85 lb/ft²).
Special Notes:
- Environmental Conditions: The product must be stored flat and protected from weather. If stored outdoors, it must be covered with an opaque protective cover.
- Thermal Resistance: R-value of 2.5 for the ½ in insulation panel.
- Compressive Strength: 550 to 759 kPa (80 to 110 psi).
- Water Absorption: Less than 3% by volume.
- Mold Resistance: Passes ASTM D3273.
- Low Temperature Flexibility: -18 °C (-0.4 °F).
- Compound Stability: Up to 121 °C (250 °F).
- UV Resistance: The membrane is not UV-stable and must be covered with a cap sheet or protective layer.
- Thickness of Membrane Layer: Minimum 2.2 mm (85 mils).
- Installation Temperature Range: Not explicitly stated, but typical SBS-modified bitumen systems are installed above 5 °C (41 °F) for optimal adhesion and performance.
- Compatibility: Can be used with SOPREMA DUOTACK adhesives and SOPRALAP membranes for complete system integration.
This product is part of a comprehensive SOPREMA roofing system and should be used in conjunction with compatible cap sheets and accessories to ensure long-term performance and compliance with CSA A123.21 and FM 4470 standards.
