Description

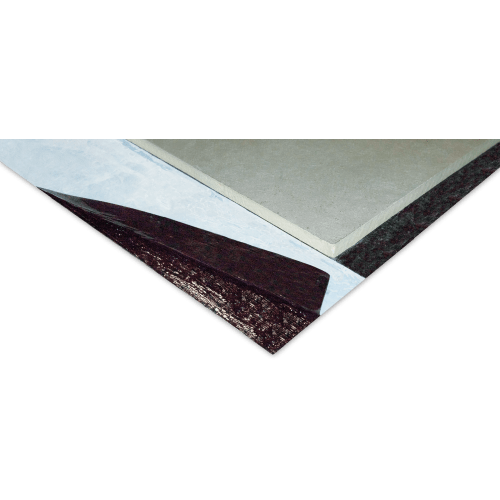

2-1 SOPRASMART ISO HD HP SANDED is a high performance base sheet panel composed of SBS modified bitumen membrane with a composite reinforcement and a sanded surface.
UNITS PER SKID: 70
Material Use:
2-1 SOPRASMART ISO HD HP SANDED is a high-performance, factory-laminated base sheet panel designed for use in roofing systems. It combines a durable SBS-modified bitumen membrane with a high-density polyisocyanurate insulation board, making it ideal for waterproofing and thermal insulation in commercial and industrial flat roofing applications.
System Components:
This product is a composite system consisting of two primary components:
1. SBS-Modified Bitumen Membrane – Reinforced with a composite mat and finished with a sanded surface.
2. High-Density Polyisocyanurate Insulation Panel (SOPRA-ISO PLUS HD) – Provides thermal resistance and compressive strength.
The system also includes the following accessories and complementary products:
- DUOTACK Adhesive – For adhered installation.
- Hot Bitumen (SEBS or oxidized) – For mop-applied installation.
- SOPREMA Screws and Plates – For mechanical fastening.
- SOPRALAP STICK Membrane – For sealing end laps.
- ELASTOCOL STICK Primer – Required before applying SOPRALAP STICK.
Applications:
This material is used as a base sheet in multi-layer SBS-modified bitumen roofing systems. It is suitable for new construction and re-roofing projects on commercial and industrial buildings. It can be installed over steel decks and other compatible substrates.
Application Details:
- Installation Methods:
- *Hot Bitumen Application:* Applied using SEBS or oxidized bitumen with a mop.
- *Adhesive Application:* Installed using DUOTACK adhesive.
- *Mechanical Fastening:* Fastened with SOPREMA screws and plates according to specified fastening patterns.
- Lap Sealing:
- Side laps feature a DUO SELVEDGE: the first portion is self-adhered, and the second portion is sealed using a hot-air welder.
- End laps must be aligned and covered with SOPRALAP STICK membrane, applied over a surface pre-coated with ELASTOCOL STICK primer.
- Panel Dimensions:
- Size: 0.914 m x 2.44 m (3 ft x 8 ft)
- Total Thickness: 15.2 mm (0.6 in)
- Insulation Thickness: 12.7 mm (0.5 in)
- Weight: 4.16 kg/m² (85.22 lb/100 ft²)
Special Notes:
- Environmental Conditions:
- Low temperature flexibility: -27 °C (-17 °F)
- Compound stability: up to 121 °C (250 °F)
- Must be stored flat and protected from weather; if stored outdoors, cover with opaque protection.
- Performance Characteristics:
- Thermal Resistance (R-value): R-2.5 for 12.7 mm thickness
- Compressive Strength: 550–759 kPa (80–110 psi)
- Water Absorption: < 3% by volume
- Mold Resistance: Passes ASTM D3273
- UV Resistance: Not specified; typically requires a UV-resistant cap sheet for exposed applications.
- Compatibility:
- This base sheet is designed to be used in conjunction with SOPREMA cap sheets and other SBS-modified bitumen membranes.
- ELASTOCOL STICK primer is required for proper adhesion of SOPRALAP STICK at end laps.
- Limitations:
- Not intended for direct UV exposure; must be covered with a compatible cap sheet.
- Installation must follow SOPREMA guidelines and local building codes, including wind uplift resistance requirements per CSA A123.21 or FM 4470 standards.
This product is a key component in SOPREMA’s SBS-modified bitumen roofing systems and is engineered for high durability, thermal performance, and ease of installation across various application methods.
