Description
SENTINEL PVC VENT is a prefabricated accessory designed to seal around low-slope polyvinyl chloride (PVC) roof vents.
UNITS PER SKID: 50
Material Use:
SENTINEL PVC VENT is a prefabricated roofing accessory specifically designed for sealing around low-slope polyvinyl chloride (PVC) roof vent penetrations. It ensures a watertight seal at vent pipe locations on PVC membrane roofing systems, contributing to the overall integrity and durability of the waterproofing system.
System Components:

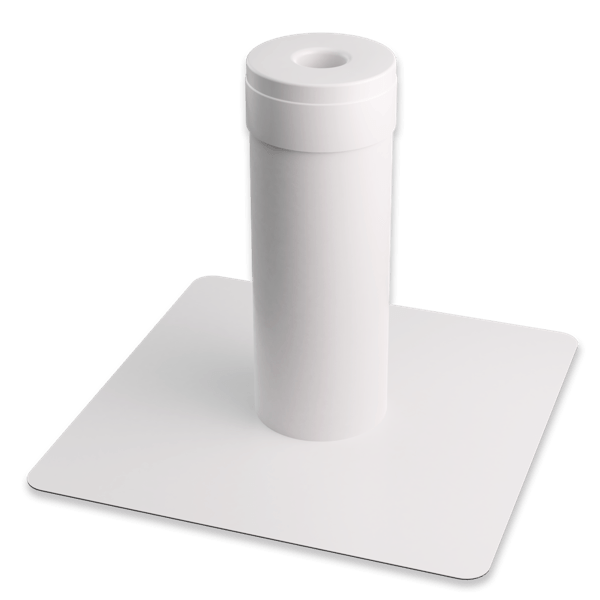

The SENTINEL PVC VENT is composed of several integrated components:
- A cylindrical core made of polystyrene, segmented into three removable cylinders of varying diameters (2.5 in, 3.5 in, and 4.5 in) to accommodate different pipe sizes.
- An outer wall and base made of PVC membrane, which is compatible with PVC roofing systems.
- A pre-attached PVC membrane base for hot-air welding to the field membrane.
- An aluminum cap that fits over the vent and is sealed with SENTINEL UNIVERSAL SEALANT.
Applications:
This product is used in low-slope roofing systems where PVC membranes are installed. It is ideal for commercial and industrial flat roofs requiring vent pipe penetrations to be sealed in a durable and watertight manner. The SENTINEL PVC VENT is compatible with SOPREMA SENTINEL PVC roofing membranes and is typically used in conjunction with other SENTINEL system components.
Application Details:
Installation involves cleaning the roof membrane and the base of the SENTINEL PVC VENT with a non-greasy solvent such as acetone or methyl ethyl ketone (MEK). The vent is then slid over the pipe, and unnecessary polystyrene cylinders are removed to fit the pipe diameter. The vent is cut to the desired height, and SENTINEL UNIVERSAL SEALANT is applied inside the aluminum cap before placing it over the vent. The PVC membrane base is then hot-air welded to the field membrane, and the weld is checked for quality using a round-tipped tool.
Special Notes:
- SENTINEL PVC VENT is part of the SOPREMA SENTINEL PVC roofing system and should be used with compatible SOPREMA PVC membranes and accessories.
- The product is designed for use with hot-air welding equipment, ensuring a strong and durable bond with the field membrane.
- The use of SENTINEL UNIVERSAL SEALANT is required for sealing the aluminum cap to the vent pipe.
- The product is not a standalone waterproofing solution but a component of a complete PVC roofing system.
- No specific environmental or application limitations (e.g., temperature, humidity) are provided in the TDS, but standard PVC membrane installation guidelines should be followed.
- The product is prefabricated and does not require mixing or curing, making it a quick and efficient solution for vent detailing.
This accessory is essential for ensuring long-term performance and watertight integrity in PVC membrane roofing systems, particularly at critical penetration points.
https://www.soprema.ca/en/products-systems/sentinel-pvc-vent
