Description
SENTINEL VCM is a 24 gauge (0.
UNITS PER SKID: 10
Material Use:
SENTINEL VCM is a composite sheet material designed for use in roofing systems, specifically for creating durable and watertight metal-to-membrane transitions. It is primarily used to fabricate metal flashings, pitch pans, and edge details in PVC roofing systems. The product combines the structural strength of metal with the waterproofing performance of a PVC membrane, making it ideal for complex detailing in roofing applications.
System Components:

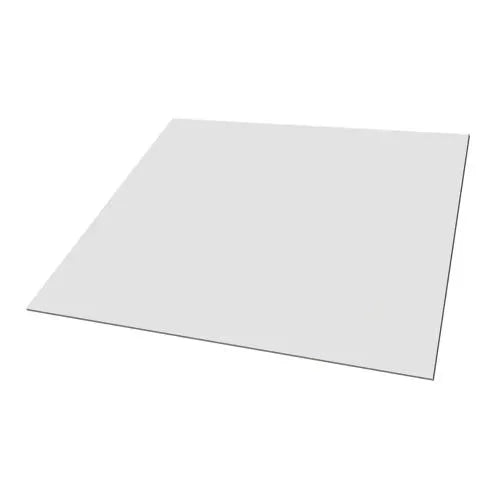

SENTINEL VCM consists of a 24-gauge (0.6 mm) galvanized metal sheet laminated with a 20 mil SENTINEL PVC membrane on one side. It is also available by special order in 24-gauge stainless steel or 0.04” aluminum, offering flexibility depending on project requirements. This product is typically used in conjunction with other SENTINEL PVC roofing membranes and accessories to form a complete waterproofing system.
Applications:
SENTINEL VCM is used in both mechanically fastened and adhered PVC roofing systems. It is particularly suited for areas requiring custom metal fabrication, such as perimeter edge details, wall flashings, and pitch pans. The laminated PVC surface allows for hot-air welding to adjacent PVC membranes, ensuring a continuous and watertight seal.
Application Details:
SENTINEL VCM is installed by fabricating the sheet into the desired shape and securing it mechanically or with adhesive, depending on the roofing system design. The PVC membrane side is then hot-air welded to the main field membrane or other PVC components. Proper surface preparation and welding techniques are essential to ensure a watertight bond. Installation should be performed by trained professionals familiar with PVC roofing systems.
Special Notes:
- SENTINEL VCM is compatible only with PVC-based roofing systems and should not be used with TPO, EPDM, or other non-PVC membranes.
- The product is available in white and grey (grey available by special order).
- Each sheet measures 1.2 x 3.0 meters (4 x 10 feet) and covers approximately 3.7 m² (40 ft²).
- Store in a clean, dry environment and protect from extreme temperatures and moisture.
- SENTINEL VCM is not a standalone waterproofing membrane but a detailing accessory used in conjunction with SENTINEL PVC membranes.
- For complete installation guidelines, consult a SOPREMA representative or refer to the full system specifications.
This product is an essential component in the SENTINEL PVC roofing system, providing a reliable solution for complex detailing and transitions between metal and membrane surfaces.
