Description

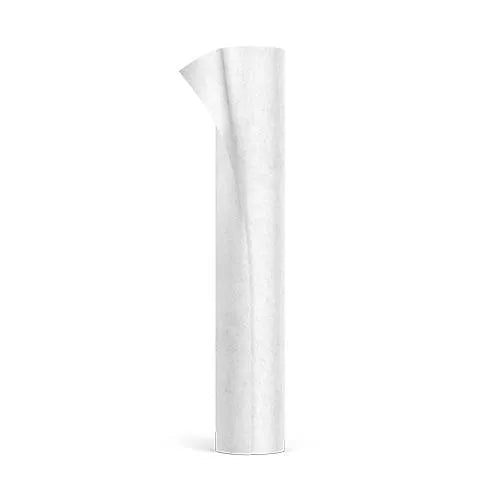

SOPRA-CELLULOSE MESH is spun-bonded polypropylene retaining membrane stapled to wall frame elements to retain the SOPRA-CELLULOSE insulation injected into each wall cavity.
UNITS PER SKID:
1.4m width - 30
2.74m width - 20
Material Use:
SOPRA-CELLULOSE MESH is a spun-bonded polypropylene retaining membrane designed for use in wall assemblies to retain blown-in cellulose insulation. It is specifically used in conjunction with SOPRA-CELLULOSE insulation as part of an interior wall system. The mesh is installed on the warm (interior) side of the exterior wall framing to hold the insulation in place within each cavity.
System Components:
This material is part of the SOPRA-CELLULOSE wall insulation system. The system includes:
- SOPRA-CELLULOSE MESH: Retaining membrane
- SOPRA-CELLULOSE: Blown-in cellulose insulation (not detailed in this TDS but referenced as the insulation component)
Applications:
SOPRA-CELLULOSE MESH is intended for indoor applications only, specifically for use in residential and commercial wall assemblies where cellulose insulation is injected into wall cavities. It is suitable for both wood and metal stud framing.
Application Details:
The mesh is installed by unrolling it along the wall studs on the interior side of the wall. It can be applied vertically (longitudinally) or horizontally (transversely) depending on space constraints. The membrane should be stapled or screwed to the studs, starting from the top to ensure even tension. Overlaps of 150 mm (6 inches) between adjacent sheets are required. Fastening intervals should be approximately 76 to 100 mm (3 to 4 inches). Use staples for wood studs and self-drilling screws for metal studs.
Special Notes:
- Thickness: 0.3 mm (12 mil)
- Material Composition: Spun-bonded polypropylene
- Dimensions Available:
- 1.40 m x 100 m (55 in. x 328 ft)
- 2.74 m x 100 m (108 in. x 328 ft)
- Weight per Roll:
- 6.8 kg (15 lb) for 55 in. roll
- 15 kg (33 lb) for 108 in. roll
- Mechanical Properties:
- Elongation MD/XD: 31% / 60%
- Tensile Strength (Grab): 52 lb
- Trap Tear Strength: 23 lb
- Puncture Strength: 15 lb
- Air Permeability: 692 cfm
- Environmental Considerations:
- Indoor use only
- Must be stored and installed in dry conditions
- Protect from UV exposure, humidity, and extreme temperature variations
- UV Resistance: Not UV stable – indoor use only
- Storage: Store in a cool, dry place away from direct sunlight and moisture
Limitations:
- Not suitable for exterior or exposed applications
- Must be protected from UV rays and moisture during storage and installation
- Not a standalone insulation product – must be used with SOPRA-CELLULOSE insulation
- No specific temperature or humidity limits are provided, but dry conditions are essential for proper installation and performance
This product is a key component in SOPREMA’s cellulose insulation system and should be used in accordance with the CCMC evaluation report 12307-R for compliance in wall systems.
https://www.soprema.ca/en/products-systems/sopra-cellulose-mesh
