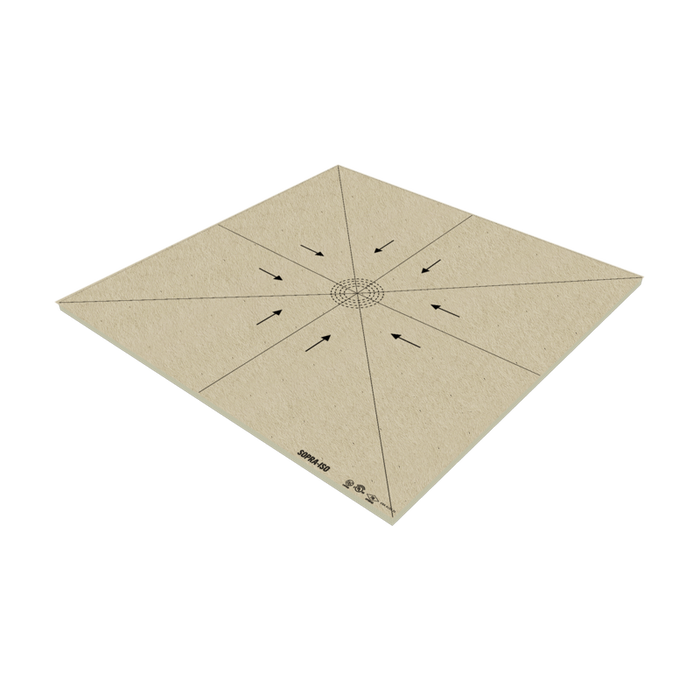

SOPRA-ISO PLUS SUMP

Considered by industry professionals as essential for isolated conventional roofs, the 4 ft × 4 ft catch basin helps ensure that the drain is at the actual lowest point.

UNITS PER SKID:

Depends on the SKU (no other info provided on their website):

SOPRA-ISO SUMP is a pre-fabricated polyisocyanurate insulation panel designed specifically for use in conventional insulated roofing systems. It is engineered to create positive drainage around roof drains by ensuring that the drain is located at the actual lowest point of the roof assembly. This product is essential for promoting efficient water flow and preventing ponding water, which can compromise the longevity and performance of the roofing system.

SOPRA-ISO SUMP is composed of a polyisocyanurate foam core with organic facers reinforced with glass fibres on both the surface and underface. It is compatible with various roofing systems and can be integrated with other SOPREMA insulation and waterproofing products. It is typically used in conjunction with SOPRA-ISO insulation boards and SOPREMA roofing membranes to form a complete roofing system.

This product is used in commercial and industrial roofing applications where effective drainage is critical. It is suitable for use on flat or sloped roof decks and is compatible with multiple installation methods, including:

- Adhesive application

- Hot bitumen adhesion

- Mechanical fastening

SOPRA-ISO SUMP panels are available in 4 ft × 4 ft (1.22 m × 1.22 m) dimensions and are manufactured with pre-engineered slopes of 2% or 4% to direct water flow toward roof drains. The panels are available in a range of thicknesses to accommodate different insulation and slope requirements:

- 2% slope: from 12.7 mm (0.5 in) to 76.2 mm (3 in)

- 4% slope: from 12.7 mm (0.5 in) to 76.2 mm (3 in)

Each thickness range corresponds to a specific product code and number of units per skid, allowing for easy specification and ordering.

- SOPRA-ISO SUMP is designed to reduce installation time by eliminating the need for field-fabricated sump areas.

- It is compatible with various drain diameters and can be used with both structural and non-structural sloped decks.

- The product has a wide service temperature range of -73°C to 122°C (-100°F to 250°F), making it suitable for extreme weather conditions.

- This product is not UV stable and must be covered with a suitable roofing membrane or protection layer.

- For optimal performance and compatibility, it is recommended to consult with a SOPREMA representative when integrating SOPRA-ISO SUMP into a complete roofing system.

This product is a key component in achieving proper drainage in insulated roof assemblies and should be considered in all roofing designs where water management is a priority.
