Description

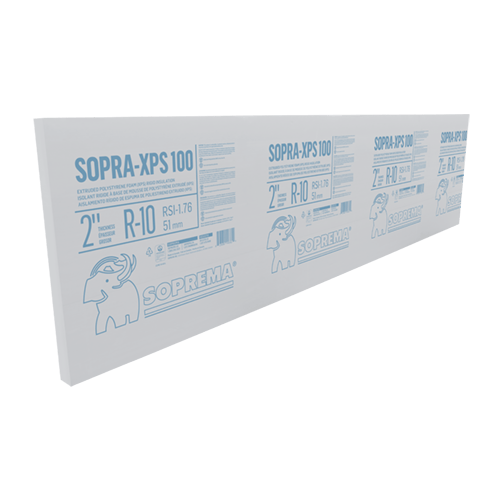

SOPRA-XPS 100 is a rigid thermal insulation board made of high-density extruded polystyrene with squared edges on its four sides.
UNITS PER SKID:
depends on thickness:
2" - no info
2.5" - 36
3" - 32
Material Use:
SOPRA-XPS 100 is a high-density extruded polystyrene (XPS) rigid insulation board designed for use in construction applications requiring durable thermal insulation under heavy loads. It is primarily used in foundation systems, under concrete slabs, in protected-membrane roofing systems (inverted roofs), parking decks, and plaza decks. Its closed-cell structure provides excellent thermal resistance and moisture resistance, making it suitable for below-grade and exposed applications where insulation performance and compressive strength are critical.
System Components:
SOPRA-XPS 100 is typically used as part of a larger waterproofing or roofing system. It can be installed in conjunction with SOPREMA waterproofing membranes and adhesives such as SOPRASEAL LM 200 T. When used in roofing or deck systems, it is often placed above the waterproofing membrane in an inverted roof assembly. For multi-layer insulation applications, SOPRA-XPS 100 boards should be installed with staggered joints and may be temporarily adhered using compatible adhesives.
Applications:
- Foundations and under-slab insulation
- Protected-membrane (inverted) roofing systems
- Parking decks and plaza decks
- Civil engineering applications requiring high compressive strength insulation
Application Details:
SOPRA-XPS 100 can be installed either loose-laid or adhered using SOPRASEAL LM 200 T or another adhesive compatible with extruded polystyrene. Boards must be laid flat, and when multiple layers are used, joints should be staggered. The product should not be exposed to UV rays for more than 60 days; if stored outdoors, it must be covered with an opaque protective cover. The maximum service temperature is 75 °C (167 °F). SOPRA-XPS 100 is flammable and must be kept away from open flames and high heat sources during storage and installation.
Special Notes:
- SOPRA-XPS 100 meets ASTM C578-14 Type V and CAN/ULC S701.1 Type 4 standards.
- It has a compressive strength of 690 kPa (100 psi) and a flexural strength of 1100 kPa (160 psi), making it suitable for high-load applications.
- The product has a low water absorption rate (0.1% to 0.6% by volume) and excellent dimensional stability (max 1.5%).
- Thermal resistance is R-5.0 per inch at 24 °C (75 °F), with long-term thermal performance (LTTR) of R-9.4 for 2-inch thickness.
- SOPRA-XPS 100 is GREENGUARD GOLD certified and made with pre-consumer and post-consumer recycled content.
- Available in standard board dimensions of 2438 mm x 610 mm (8 ft x 2 ft) and thicknesses of 51 mm (2 in) and 76 mm (3 in); other sizes available upon request.
- Not UV stable; must be protected from sunlight exposure beyond 60 days.
- No pot life or curing time applies, as this is a rigid board product.
- Not suitable for use in applications where temperatures exceed 75 °C (167 °F).
SOPRA-XPS 100 is a versatile and durable insulation solution that integrates seamlessly into SOPREMA’s waterproofing and roofing systems, offering long-term thermal performance and structural integrity in demanding construction environments.
https://www.soprema.ca/en/products-systems/sopra-xps-100
