Description

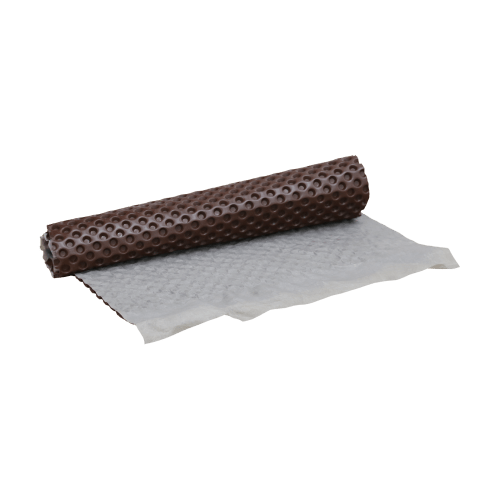

SOPRADRAIN ECO-5 is a drainage panel composed of polypropylene dimpled core onto which a fabric made of a spunbonded non-woven polypropylene fibers is factory-laminated.
UNITS PER SKID: 6
Material Use:
SOPRADRAIN ECO-5 is a high-performance drainage panel designed for use in green roofing systems, roof gardens, and plaza-deck assemblies. It serves as a critical component in vegetative roofing systems by facilitating efficient water drainage and protecting the waterproofing membrane from hydrostatic pressure and root intrusion.
System Components:
SOPRADRAIN ECO-5 is composed of a dimpled polypropylene core that provides structural drainage capacity, factory-laminated with a spunbonded non-woven polypropylene geotextile fabric. The dimpled core allows for water flow beneath the vegetative layer, while the geotextile fabric acts as a filter, preventing soil particles from clogging the drainage path. This product is typically used in conjunction with other SOPRANATURE system components such as root barriers, waterproofing membranes, and growing media.
Applications:
SOPRADRAIN ECO-5 is specifically designed for use in SOPRANATURE green roofs, roof gardens, and plaza-deck systems. It is suitable for both intensive and extensive vegetative roofing applications where effective drainage and protection of the underlying waterproofing system are required.
Application Details:
The drainage panels are unrolled directly onto the prepared surface, ensuring proper alignment and overlap of the geotextile fabric between adjacent panels to maintain continuous filtration and drainage. The product is lightweight and easy to handle, making installation efficient. Each roll measures 1.83 m x 20 m (6 ft x 65.5 ft), covering approximately 36.6 m² (393 ft²) per roll. The panel has a thickness of 8 mm (5/16 in) and a weight of 1 kg/m² (0.17 lb/ft²).
Special Notes:
- Compressive Strength: The drainage core has a compressive strength of 250 kPa (5,200 psf), making it suitable for use under soil and paver loads in vegetative systems.
- Flow Capacity: The in-plane flow rate is 155 L/min•m (12.5 gal/min•ft), ensuring rapid drainage even under high water load conditions.
- Fabric Properties: The geotextile fabric has a water flow rate of 2850 L/min•m² (70 gal/min•ft²) and a grab tensile strength of 667 N (150 lbf), providing durability and resistance to mechanical damage during installation.
- Environmental Conditions: SOPRADRAIN ECO-5 is made of polypropylene, which is resistant to rot, mildew, and chemical degradation, making it suitable for long-term use in buried applications.
- UV Exposure: This product is not intended for prolonged UV exposure and should be covered with soil or pavers shortly after installation.
SOPRADRAIN ECO-5 is an essential component in SOPREMA’s SOPRANATURE vegetative roofing systems, contributing to sustainable building practices by supporting stormwater management and enhancing rooftop green space performance.
