Description

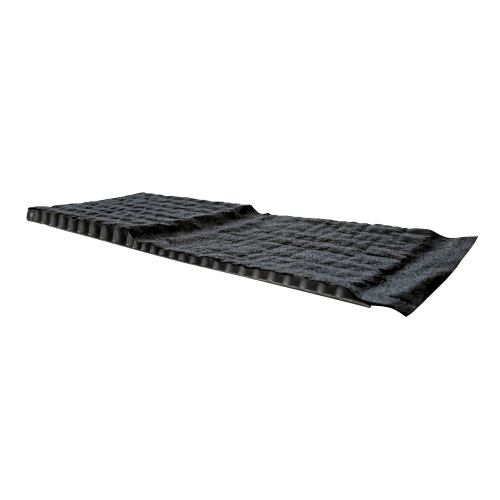

SOPRADRAIN HF is a combination of a low and high profile core into one product design made of a high-strength drainage panel consisting of a polypropylene core with a factory-laminated geotextile.
UNITS PER SKID: 6
Material Use:
SOPRADRAIN HF is a high-performance drainage composite designed for use in vertical commercial foundation wall applications. It is specifically engineered to protect waterproofing membranes by facilitating efficient water drainage and relieving hydrostatic pressure. The product is used in conjunction with SOPRADRAIN 10-G or 15-G to complete a comprehensive foundation drainage system.
System Components:
The SOPRADRAIN HF system includes the following components:
- SOPRADRAIN HF: A dual-profile polypropylene drainage core with a factory-laminated geotextile filter fabric.
- SOPRADRAIN T-OUTLET and SOPRADRAIN END-OUTLET: Accessories that allow direct connection to stormwater drainage systems.
- SOPRADRAIN 10-G or 15-G: Additional drainage layers used in combination with SOPRADRAIN HF to complete the system.
Applications:
SOPRADRAIN HF is intended for use in vertical foundation wall drainage applications, particularly in commercial construction. It is suitable for both conventional and blindside waterproofing systems. The product is installed over waterproofing membranes to protect them from backfill damage and to ensure proper drainage of water away from the structure.
Application Details:
- Installation Orientation: In conventional waterproofing, the geotextile filter fabric must face the backfill. In blindside waterproofing, it should face the soil retention system.
- Roll Dimensions: 0.61 m x 15.25 m (2 ft x 50 ft)
- Gross Coverage per Roll: 9.30 m² (100 ft²)
- Thickness: Low profile: 11 mm (0.44 in); High profile: 25.4 mm (1.00 in)
- Compressive Strength: 431 kPa (9,000 psf)
- Flow Capacity (ASTM D4716):
- Transition zone: 224 L/min/m (18 gal/min/ft)
- High profile zone: 994 L/min/m (80 gal/min/ft)
Special Notes:
- SOPRADRAIN HF must always be used in conjunction with SOPRADRAIN 10-G or 15-G to ensure complete drainage performance.
- The geotextile filter fabric has an apparent opening size of 0.21 mm and a high water flow rate of 4,483 L/min/m² (110 gal/min/ft²), ensuring excellent filtration and drainage.
- The product offers high puncture resistance (2.00 kN or 450 lbs) and tensile strength (712 N or 160 lbf), making it suitable for demanding construction environments.
- SOPRADRAIN HF is not a waterproofing membrane but a drainage layer that protects the waterproofing system and enhances its performance.
- For complete installation guidelines, consult a SOPREMA representative.
This system is ideal for use in below-grade waterproofing assemblies where efficient drainage and protection of the membrane are critical.
